FF-N20VA/TA Brush Micro Motor for Door Locker

Product Description

FF-N20VA/TA Brush Micro Motor for Door Locker

Introduction

20 years' motor design and production experience
90 million-piece annual capacity
Auto motors are almost entirely produced on automated lines
Facilities certified to IAFT16949:2016,ISO 9001:2008 and ISO 14001:2004
Advanced equipment from Sodick, Hexagon,Mitutoyo, Magtrol and Votsch
10% sales revenue invested in R&D and automatic equipment every year
Customer PPM: auto motors s 30;general motors s 3,000

Product Description





(1) Features

- NdFeB Magnet;

- Precious Metal Brush;

- Oil-impregnated Bearing;

- Plastic End Cap

- Stainless steel shaft



Note: 1. Shaft length can be customized by your requirement.

          2. Metal counterweight/ Vibration for your option.

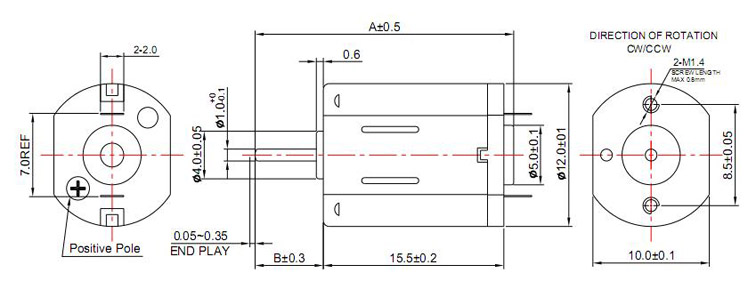

(2) Outline drawing

  • Dimention: 15.5mm(L) * 12.0mm(D)*10.0mm(F)
  • Customization:
    - Shaft Length
    - Technical Data
    - Varistor for option

(3) Technical Data
Model No.: FF-N20VA-10140

  • MEASURING CONDITIONS

      a. Motor Position: To be measured with motor horizontally held.
      b. Environmental temperature: +10°C~+30°C
      c. Environmental humidity: 45%~85%RH.
      d. Dimension drawing: See.



MODEL           VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY  STALL
Operating Norminal  Speed  Current  Speed  Current    Torque Output     Torque Current
   Range      V   r/min      A    r/min      A  mNm   g.cm       W  mNm  g.cm       A
FF-N20VA 05240  3.0-12.0     12  16100  0.015  12240   0.06   0.3    3   0.37   1.2   12    0.21
08260   2.0-5.0      5  14600   0.03  11800   0.11  0.26   2.6   0.31   1.3   13    0.47
FF-N20TA  2818   0.8-1.5     12  34000     0.7  31000    1.4   0.2    2   0.64   1.6   16       6



Remark: The above technical data is only for reference, we can customize them according to
different requirements after evaluation.

Application

More DC motors

Kinmore  The most complete DC motor supplier.



Company Information


Certificate


FAQ

Q:1.What kind of motors you can provide?

A: For now, we mainly provide permanent magnet brushed dc motors (including vibration motors, low voltage dc motors and high voltage dc motors) with diameter range in 6~80mm and also Dia10~80mm size gear motors.

Q:2. Can you send me a price list?

A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.

Q:3. What's the lead time for regular order?

A: For orders, the standard lead time is 35-40 days and this time can be shorter or longer based on different model, period and quantity.

Q:4. Is it possible for you to develop new motors if we can provide tooling cost?

A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.

Q:5. Can I get some samples?

A: It depends. If only a few samples for personal use or replacement, I am afraid it'll be difficult for us to provide because all of our motors are custom made and no stock available if there is no further needs. If just sample testing before the official order and our MOQ, price and other terms are acceptable, we'd love to provide samples.

Contact us if you need more details on Brush Micro Motor. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Micro Electric Motor、12mm Brushed Motor. If these products fail to match your need, please contact us and we would like to provide relevant information.
