hot selling high quality 4.5v dc motor for wind turbine

Product Description

       hot selling high quality 4.5v DC motor for wind turbine ( FF-N10VA-10190 )

Introduction

20 years' motor design and production experience
90 million-piece annual capacity
Auto motors are almost entirely produced on automated lines
Advanced equipment from Sodick, Hexagon,Mitutoyo, Magtrol and Votsch
10% sales revenue invested in R&D and automatic equipment every year
Customer PPM: auto motors s 30;general motors s 3,000

Product Description



Note of Electric Motor :

     1. shaft length can be custom made.

     2. metal counterweight/vibrator for option





1.MEASURING CONDITIONS
          1.1.Rated voltage: 4.5V DC
          1.2.Motor Position: To be measured with motor horizontally held.
          1.3.Environmental temperature: +10°C~+30°
          1.4.Environmental humidity: 45%~85%RH.

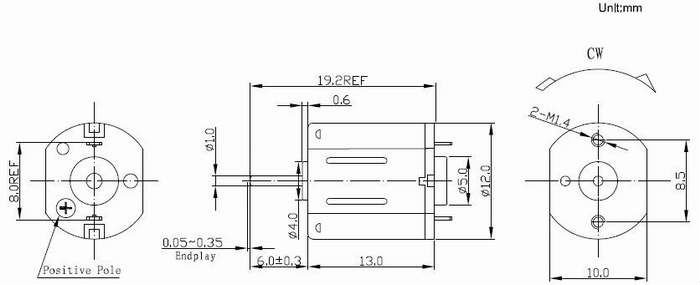

          1.5.Dimension drawing: See.



2.ELECTRICAL CHARACTERISTICS (At initial stage after 30 seconds run-in):
          2.1.At No load
                2.1.1.Speed: 21600±10%rpm
                2.1.2.Current: 0.06A

          2.2.At On load
                2.2.1.Torque: 2.5 g-cm
                2.2.2.Speed: 18500 ±10%rpm
                2.2.3.Current: 0.2A

          2.3.At Stall
                2.3.1.Torque: 12g.cm
                2.3.2.Current: 0.8A



Remark: The above technical data of the electric motor are only for reference, we can customize them according to different requirements after evaluation.



Typical Application">
Typical Application

Automobile: EVP, EPB,ETC, ELS,steering wheel regulator, car seat, rearview mirror,  central locking, odometer,headlight, windshield wiper, trunk opener, air conditioner.

Home Appliance: air fresheners, coffee machine, blender, juicer, mixer, slow cooker, electric iron, eggbeater, electronic curtain,smart toilet., robot vacuum cleaner, dish washer, door lock etc.

Industry: power tools, electric screw driver, electric drill, prepaid water meter, pump, valve etc.

Persoanl care: hair dryer, hair clipper, adult toy, electric shaver,face cleaning machine etc

Smart products: robot, sweeping robot, smart toilet cover, smart phone, camera etc.

Medical Equipment: massager, massaging chairs,massaging bed etc.











Our Services

 Customization Service:

DC Motor, gearbox motor, Vibration MotorAutomotive Motor

Accessories offered like encoder, gear, worm, wire, connector.

Ball bearing or Oil-impregnated bearing.

Shaft configuration(multi-knurls,D-cut shape, four-knurls etc).

Metal end cap or plastic end cap.

Precious metal brush/ carbon brush.

Technical data including rated voltage, speed, current and torque.





Contact us if you need more details on 4.5v Dc Motor for Wind Turbine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about High Quality 4.5v Dc Motor、Hot Selling 4.5v Dc Motor. If these products fail to match your need, please contact us and we would like to provide relevant information.
