DC 24V MOTOR GENERATOR

Product Description

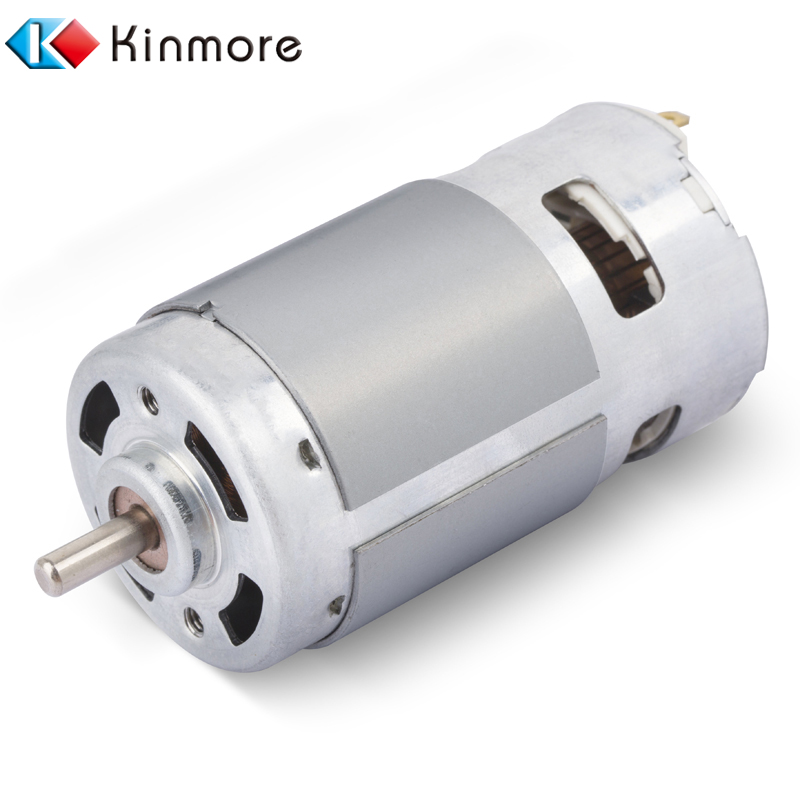

DC 24V MOTOR GENERATOR

Product Description













-Metal End Cap

-Class F Magnet Wire

-Leaf Brush System

-Carbon Steel Shaft



MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
RANGE V r/min A r/min A mNm g.cm W mNm g.cm A
RS-850SA 23160R 6.0-12.0 12 2750 0.13 2289 0.65 23 235 5.52 137.3 1400 3.2
27190R 6.0-12.0 12 2250 0.11 1893 0.58 24.9 254 4.93 156.9 1600 3.1
23245R 6.0-12.0 24 3300 0.1 2838 0.59 29.8 304 8.9 212.8 2170 3.6
29146R 6.0-24.0 24 6135 0.19 5406 1.05 38.3 391 21.75 323.5 3300 10.13
Unit Conversion: 1g.cm0.098mN.m0.014oz.in   1mm=0.039in   1g=0.035oz



Remark:The above technical datas are only for reference,we can customerize them according to different requirements after evaluation.

Application

More DC motors

Kinmore  The most complete DC motor supplier.

We are one of the largest ,most complete DC Motor manufacturer in the Industry ,with huge production capacity of 90 million pcs per year .
Over 40 experienced engineers to provide new product development service for our customers .
If they are not what you want , please kindly contact us to recommend you a suitable one according to your requirement.

Company Information


Certificate


FAQ

Q:1.What kind of motors you can provide?

A: For now, we mainly provide permanent magnet brushed dc motors (including vibration motors, low voltage dc motors and high voltage dc motors) with diameter range in 6~80mm and also Dia10~80mm size gear motors.

Q:2. Can you send me a price list?

A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.

Q:3. What's the lead time for regular order?

A: For orders, the standard lead time is 35-40 days and this time can be shorter or longer based on different model, period and quantity.

Q:4. Is it possible for you to develop new motors if we can provide tooling cost?

A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.

Q:5. Can I get some samples?

A: It depends. If only a few samples for personal use or replacement, I am afraid it'll be difficult for us to provide because all of our motors are custom made and no stock available if there is no further needs. If just sample testing before the official order and our MOQ, price and other terms are acceptable, we'd love to provide samples.

Contact us if you need more details on Dc Generator Motor. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Dc 24v Motor Generator、24v Dc Generator Motor. If these products fail to match your need, please contact us and we would like to provide relevant information.
